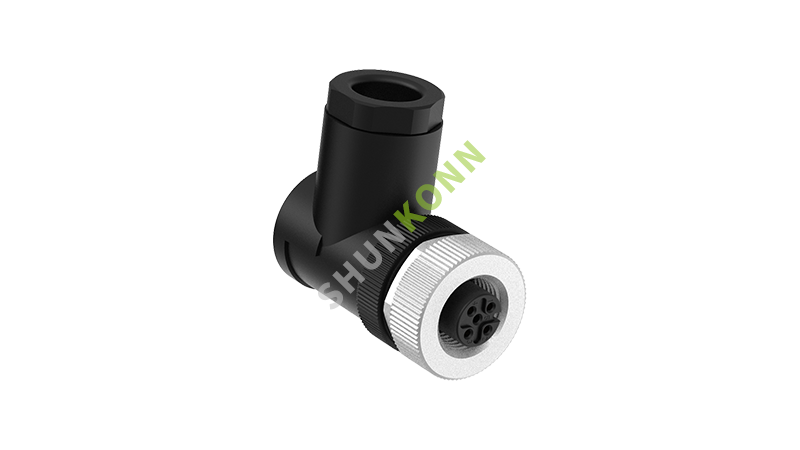

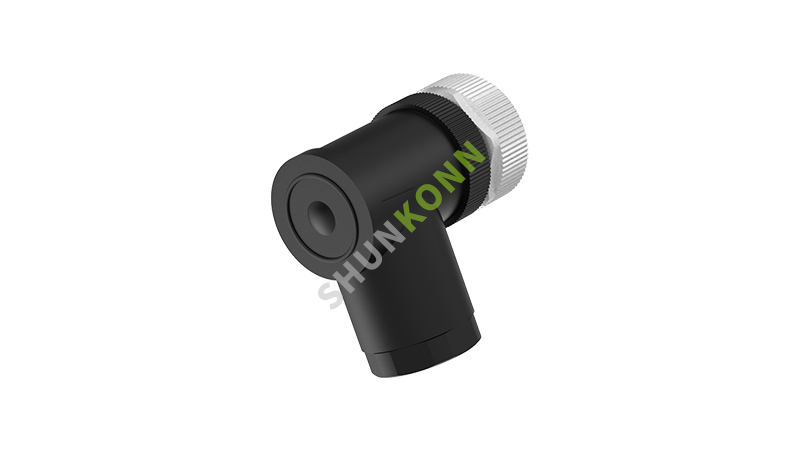

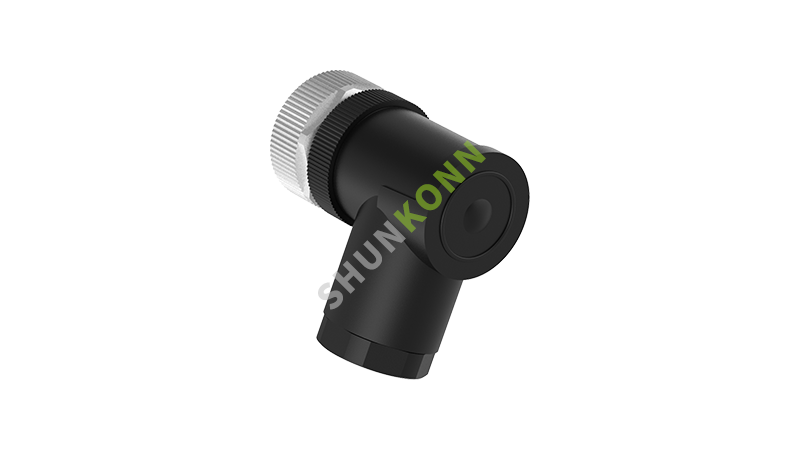

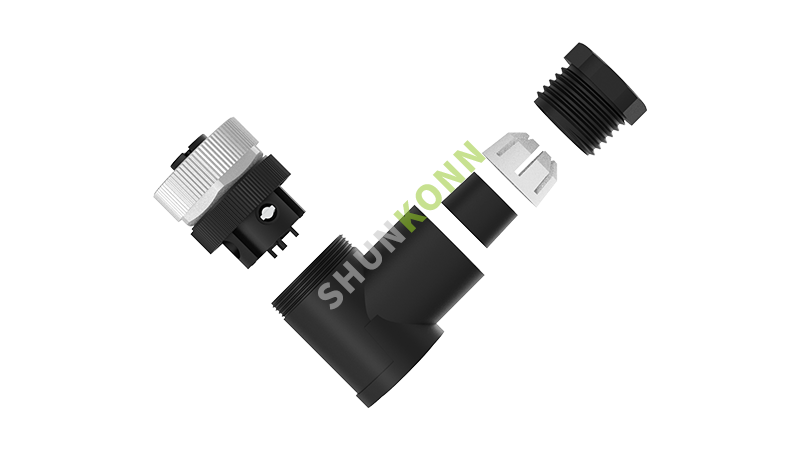

SKM12 A Series M12 A Coded Connectors Right Angle Plastic Assembled 4PIN Female Screw type PG9
Product Specification
Number of pins/holes core
2PIN
Plug Type
Female
Dummy-proof keying
A
Straight/ Elbow
Straight
Terminal connection type
Screw type
Mounting type
Right Angle Plastic Assembled
Protection Rating
IP68
Wire Gauge/Size
22AWG/0.34mm²
Operating Temperature
-40°C Tо +80°C (Fixed Installation)
-20°C Tо +80°C (flexible mounting)
Number of insertions and removals
> 500 insertions and removals
Rated voltage
250V
Rated impulse voltage
1500V
Rated current
4A
Contact resistance
5mΩ
Insulation resistance
100 MΩ
Shielding structure
non-shielded
Shell material
copper nickel-plated
Connector core
PA66 + GF
Pollution class
III
Flame retardant grade
UL94 V0
Industry Standard
IEC61076-2-111
