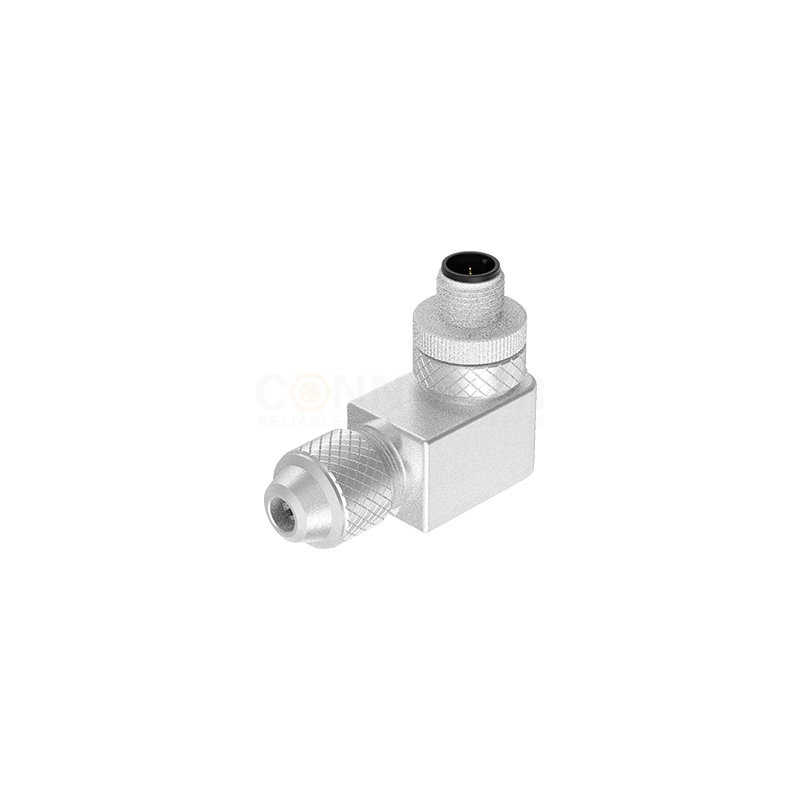

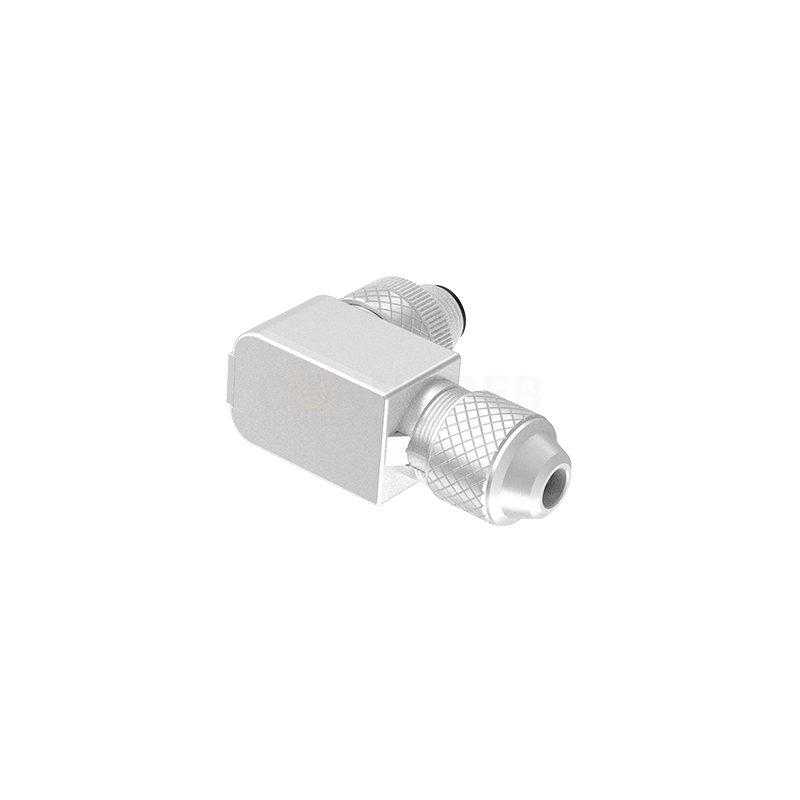

M12 Right Angle Metal Assembly Male Connector Screw Type is a rugged interface solution designed for industrial environments. Combining the advantages of right-angle design and screw termination, it provides strong mechanical strength and electrical performance, suitable for a variety of demanding application scenarios.
☑Standardized design: The M12 connectors comply with international standard IEC 61076-2-101, ensuring interchangeability and compatibility between different manufacturers.
☑Protection level: IP67 or higher protection level can effectively prevent dust, water and other pollutants from entering in harsh environments.
☑Vibration resistance: Thread locking mechanism is used to ensure stable electrical connections can be maintained under vibration and impact conditions.
☑Coding diversity: Provides various encoding types such as A, B, C, D to avoid misinterpolation and adapt to different application need
☑Transmission capability: Supports signal transmission over Ethernet connections up to 1 Gbps, while also suitable for DC power connections, making it an ideal choice for general-purpose sensors, actuators and IO-Link devices.
☑Voltage and Current Rating: Depending on the application scenario, the A-encoded connector can support voltage ranges from 30V to 250V, and current capacity from 1.5A to 4A.
☑Durability: The high-quality brass or phosphorus copper terminals have been solid gold-plated, with strong oxidation resistance, ensuring a plug-in and unplugging life of more than 500 times.
| Pins | 2A | 3A | 4A | 5A |
| Male |  |
 |
 |
 |
| 6A | 8A | 12A | 17A | |
 |
 |
 |
 |
|
| 4B | 5B | 3C | 4C | |
 |
 |
 |
 |
|
| 5C | 6C | 4D | ||
 |
 |
 |
||
| Pins | 2A | 3A | 4A | 5A |
| Female |  |
 |
 |
 |
| 6A | 8A | 12A | 17A | |
 |
 |
 |
 |
|
| 4B | 5B | 3C | 4C | |
 |
 |
 |
 |
|
| 5C | 6C | 4D | ||
 |
 |
 |
| Pins | 2 Pin Core Color | Pins | 3 Pin Core Color | Pins | 4 Pin Core Color A/B Code | |||
| 1 | BN |  |
1 | BN | |
1 | BN | |
| 2 | - |  |
2 | - | |
2 | WH |  |
| 3 | BU |  |
3 | BU | |
3 | BU | |
| 4 | BK |  |
4 | BK | |
|||
| - | ||||||||
| Pins | 4 Pin Core Color D Code | Pins | 5 Pin Core Color | Pins | 6 Pin Core Color | |||
| 1 | YE |  |
1 | BN | |
1 | BN | |
| 2 | WH | |
2 | WH | |
2 | WH | |
| 3 | OG |  |
3 | BU | |
3 | BU | |
| 4 | BU | |
4 | BK | |
4 | BK | |
| 5 | GY |  |
5 | - | |
|||
| 6 | GY | |
||||||
| 7 | RD |  |
||||||
| - | ||||||||
| Pins | 8 Pin Core Color | Pins | 12 Pin Core Color | Pins | 17 Pin Core Color | |||
| 1 | WH | |
1 | BN | |
1 | BN | |
| 2 | BN | |
2 | BU | |
2 | BU | |
| 3 | GN |  |
3 | WH | |
3 | WH | |
| 4 | YE | |
4 | GN | |
4 | GN | |
| 5 | GY | |
5 | PK |  |
5 | PK | |
| 6 | PK | |
6 | YE | |
6 | YE | |
| 7 | BU | |
7 | BK | |
7 | BK | |
| 8 | RD | |
8 | GY | |
8 | GY | |
| 9 | RD | |
9 | RD | |
|||
| 10 | VT |  |
10 | VT | |
|||
| 11 | OG | |
11 | OG | |
|||
| 12 | LTGN |  |
12 | LTGN | |
|||
| 13 | LTBU |  |
||||||
| 14 | BKWH |  |
||||||
| 15 | BNWH |  |
||||||
| 16 | RDWH |  |
||||||
| 17 | BUWH |  |
||||||
If you would like to know more about our products and services, please send us a message. Our experts will contact you as soon as possible.
