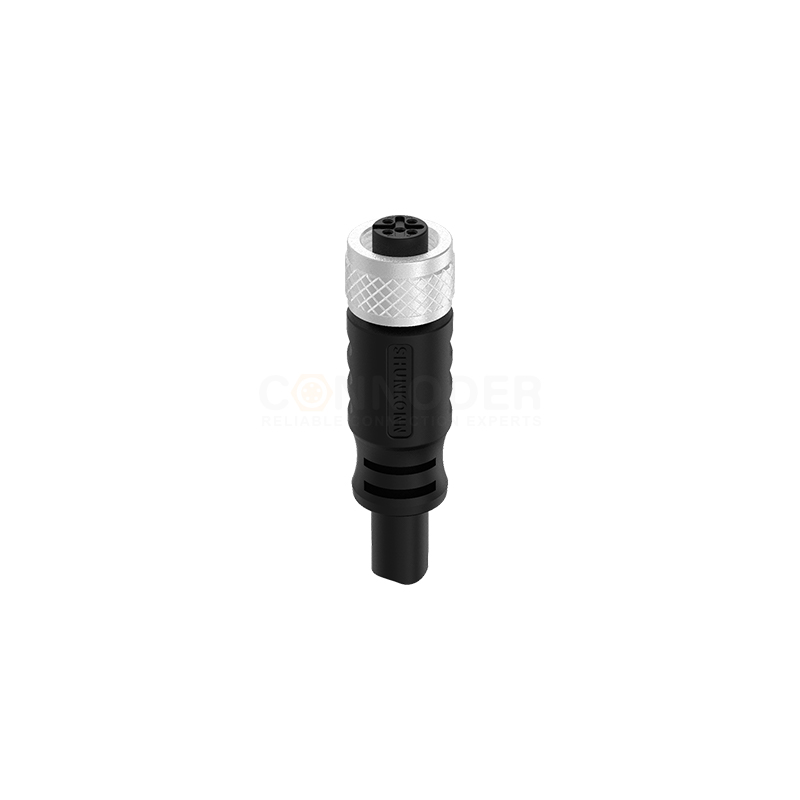

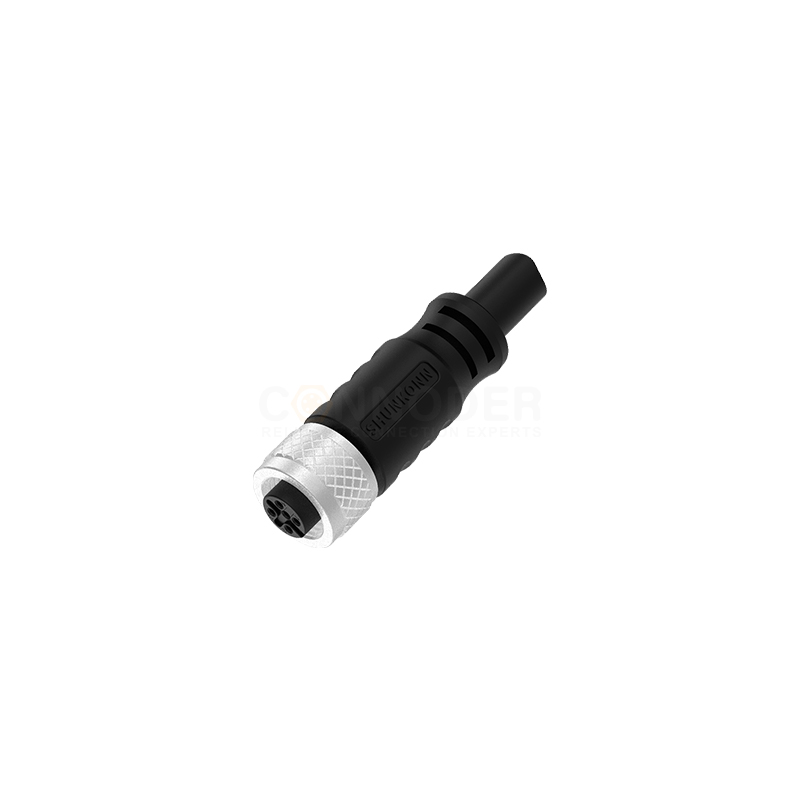

SKM12 A Series M12 A Coded Connection Cable Straight Overmolded Type 5PIN Female Solder Type

Product Code : MB12AF-055LSSTXXXXX01

Number of pins/holes core 5PIN

Plug Type Female Head

Dummy-proof keying A

Straight/ Elbow Straight

Terminal connection type Solder type

Mounting type Straight Overmolded Type

Protection Rating IP68

Wire Gauge/Size 22AWG/0.34mm²

Operating Temperature -40°C Tо +80°C (Fixed Installation) -20°C Tо +80°C (flexible mounting)

Number of insertions and removals > 500 insertions and removals

Rated voltage 60V

Rated impulse voltage 1500V

Rated current 4A

Contact resistance 5mΩ

Insulation resistance 100 MΩ

Shielding structure shielded

Shell material copper nickel-plated

Connector core PA66 + GF

Pollution class III

Flame retardant grade UL94 V0

Industry Standard IEC61076-2-111
